Aluminum based PCB
1 Layer

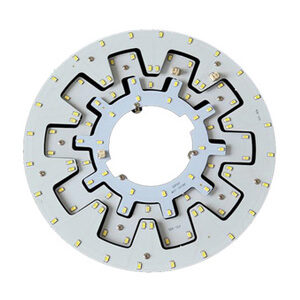

Aluminum base PCB,Al 1.5mm,5052H34,dielectric 0.1mm,copper thickness 1 oz.
Solder mask white,silkscreen black.
Used in Led Lighting .
Metal Core PCB Capability:
| Circuit Trace Width/Space: 4/4mil |
| The Minimum Hole Diameter: 0.5mm (NPTH), 0.3mm(PTH) |
| The Minimum legend Height/Width: 0.8mm/0.15mm |
| Surface Finishing: HASL-LF, ENIG, Immersion Silver,Plated Silver,OSP,ENEPIG |
| Maximum Panel Dimension: 1200mm x 600mm |
| Final Board Thickness: 0.5mm ~ 5.0mm |
| Final Copper Thickness: HOZ 1OZ 2OZ 3OZ 4OZ 6OZ 10OZ |
| Dielectric Thickness: 50um 75um 100um 125um 150um |
| Metal Type: AL(1100.3003.5052.6061),Mirror Finish Al, Cu, Fe,Stainless Steel |
| Metal Substrate Thickness: 0.5mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 3.0mm 3.2mm |
| Solder mask colour: White, Black, Green,Red, Yellow,Blue,Grey |
| Shaping: Tooling Punching,CNC Routing,V-CUT |
| Special Hole: Blind&buried hole,Depth milling,T-slot,Countersink hole |
