OEM Heavy Copper PCB

Home » Product » Heavy Copper PCB » OEM Heavy Copper PCB

Heavy Copper PCB

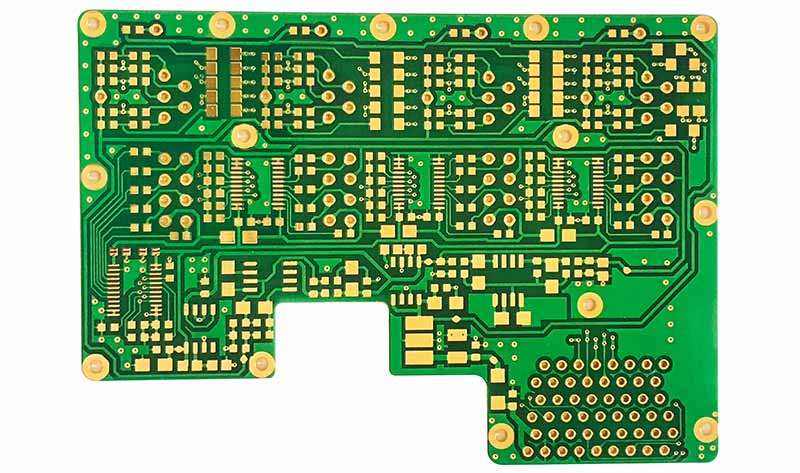

OEM Heavy Copper PCB

Base Material:FR4/Halogen free/Rogers
Board thickness:0.15mm-10mm
Min. Hole Size:0.1mm
Surface Finishing:ENIG/OSP/HASL
Impedance Control:±10%
Max Surface Cu Thickness:12 oz

Quote Now Next Product

Layer count:6

Board thickness: 2.5±0.3mm

Trace/Space: 11.8/11.8mil

Surface Treatment: ENIG

Crafts: 8oz copper at inner layers,5oz copper at outer layers.

Application: Power electronics

PCB capability
Item	PCB capability	PCB capability	PCB capability
Max Layer	60L	8L	36L
Inner Layer Min Trace/Space	3/3mil	3/3mil	3/3mil
Out Layer Min Trace/Space	3/3mll	3.5/4mll	3.5/4mll
Inner Layer Max Copper	6oz	2oz	6oz
Out Layer Max Copper	6oz	2oz	3oz
Min Mechanical Driling	0.15mm	0.1mm	0.15mm
Min Laser Drilling	0.1mm	0.1mm	0.1mm
Max Aspect Ratio(Mechanical Driling)	20:01	10:01	12:01
Max Aspect Ratio(Laser Drilling)	1:01	/	1:01
Press Fit Hole Ttolerance	±0.05mm	±0.05mm	±0.05mm
PTH Tolerance	±0.075mm	±0.075mm	±0.075mm
NPTH Tolerance	±0.05mm	±0.05mm	±0.05mm
Countersink Tolerance	±0.15mm	±0.15mm	±0.15mm
Board Thickness	0.4-8mm	0.1-0.5mm	0.4-3mm
Board Thickness Tolerance(<1.0mm)	±0.1mm	±0.05mm	±0.1mm
Board Thickness Tolerance(≥1.0mm)	±10%	/	±10%
Min Board Size	10*10mm	5*10 mm	10*10mm
Max Board Slze	22.5*30 inch	9*14 inch	22.5*30 inch
Contour Tolerance	±0.1mm	±0.05mm	±0.1mm
Min BGA	7mil	7mil	7mil
Min SMT	7*10mil	7*10mll	7*10mll
Min Solder Mask Clearance	1.5mil	3mil	1.5mil
Min Solder Mask Dam	3mil	8mil	3mil
Min Legend Width/Height	4/23mil	4/23mil	4/23mil
Strain Fillet Width	/	1.5±0.5mm	1.5±0.5mm
Bow &Twist	0.003	/	0.0005

Q1:What kind of PCB file format can you accept for production?
Gerber, PROTEL 99SE, PROTEL DXP, CAM350, ODB+(.TGZ)

Q2:Is my PCB files safe when I submit them to you for manufacturing?

We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written permission from you, nor we'll share these files with any other 3rd parties.

Q3:What payments do you accept ?
-Wire Transfer(T/T),Western Union,Letter of Credit(L/C)
-Paypal ,Ali Pay,Credit Cart

Q4:How to get the PCBs?
A:For small packages, we will ship the boards to you by DHL,UPS,FedEx,EMS. Door to door service! You will get your PCBs at your home.
B:For heavy goods more than 300kg, we may ship your boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.

Q5:What is your minimum order quantity?
Our MOQ is 1 PCS.

Q6: Can we visit your company?

No problem. You are welcome to visit us in Shenzhen. Or the other factory is in GuangDong province.

Q7: How can you ensure the quality of the PCBs?
Our PCBs are 100% test including Flying Probe Test, E-test and AOI.
